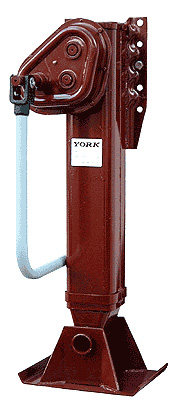

  Landing Gears

Product Features
Maintenance free.
2 speed train gear box.
Low crank force.
Double tubing construction, with 130mm (5") upper housing.
Universal mounting plate.
Foot options to suit various applications.

Specification
Capacity: 28,000kg/pair
Static Load: 64,000kg/pair
Weight: ~105kg
Mounting Pattern: 4 x 57 x 190mm
DIN Universal
Mounting Height: 844mm
Max. lift travel: 480mm
Low Gear ratio: 0.72mm Per turn of handle
High Gear ratio: 5.42mm Per turn of handle
