  Introduction

Shock Absorber
  Heavy duty shock absorbers incorporating high damping characteristics helps eliminate wheel hop.

Fully contained within the suspension, mounted between the front hanger and the spring seat they are protected from road damage. This also allows for a more compact design giving a shorter stroke which reduces heat and increases service life. For most applications the shock absorber can also act as a check strap.

Pivot Bush
  The exceptionally tough, metal encased Pivot Bush chosen for its very compact design, virtually eliminates rubber extrusion thus greatly extending its effective working life. The bonding of the bush material to the outer case and inner sleeve ensures the bush works in shear and cannot rotate. This compact design also permits front bracket reinforcing to be closer to the point of side load and reduces unwanted side movements.
Spring
  The shape of the spring contains the suspension geometry. Tecair I has a standard rating of 12 tonne which is specially designed for arduous applications.
Air Spring
  Using quality large diameter, low pressure air springs allow a reduction of the required air pressure at typical axle loads. A 4 bar system fed from a 6 bar air reservoir more readily maintains the correct ride height and trailer stability. With the air spring including an internal bump stop, a long service life is expected.
Axle Seat
  The design philosophy of the axle seat for Tecair I is allowing for ease of fitment of the shocker during servicing.
Axle
  The axle, which serves as a torsion beam, is manufactured from 127mm diameter seamless manganese alloy steel, its high strength and resistance to bending characteristics are a critical part of the design of Tecair air suspensions.
- 16mm wall thickness suitable for highway operations.
- 19mm wall thickness suitable for off-road operations.
 Download Product Brochures




Tecair1Tecair2Tecair ZDuratracRecair FB VRHAxle Lift


Tecair Z

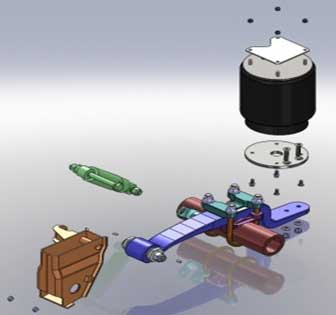

Air Suspension Modules 9 Ton Capacity with 5" Round Beam

Technical Specification
Capacity 9 Tonnes Per Module
Standard Spring Center 960mm @ 1,850mm Axle Track Length
Standard Airbag Center 860mm @ 1,850mm Axle Track Length
Tare Weights (Approx) 167Kg per Module complete



Technical Information
  • Pivot bush has a metal inner sleeve and bonded to outer rubber with  free floating anchor point for spring.
  • Pivot bolt subjected to pure tensile load and all shear and shock load absorbed by bush.
  • Pivot rubber bush configured for good resilience and shock proof performance.
  • The Parabolic spring as the trailing arm has smooth suspension performance and excellent roll stiffness characteristics.
  • Durable Shock absorber incorporating high damping characteristic and friendly compliance.
  • Designed for user friendly installation with structural rigidity.
  • Fully fledged air lifting system with improved ground clearance.
  • Low compact weight.
  • Proven spring seating arrangement for easy shock absorber fitment and spring clamping.
  • Reliable Air spring performance for enhanced stability.
  • Compact installation arrangement.
  • Ease of wheel alignment process to cater 20mm axial adjustment

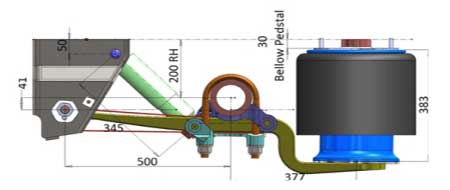

Overslung Ride Height (mm) Model Number (w/o lift) Model Number (w bolt axle lift)
350 TAZ-09V350RS TAZ-09V350RS00E1
375 TAZ-09V357RS TAZ-09V375RS00E1
400 TAZ-09V400RS TAZ-09V400RS00E1

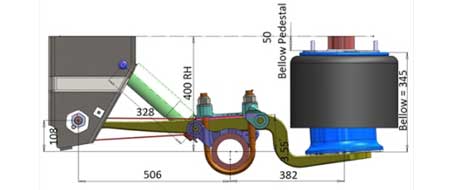

Underslung Ride Height (mm) Model Number (w/o lift) Model Number (w bolt lift)
170 TAZ-09U170RS TAZ-09U170RS00E1
200 TAZ-09U200RS TAZ-09U200RS00E1
225 TAZ-09U225RS TAZ-09U225RS00E1


TORQUE SETTINGS
PIVOT BOLT 1400Nm
DAMPER BOLTS 250Nm
AIRSPRING MOUNTING BOLTS 70Nm
AIRSPRING TOP PLATE STUDS 35Nm
U BOLT ITEM 6 820Nm
