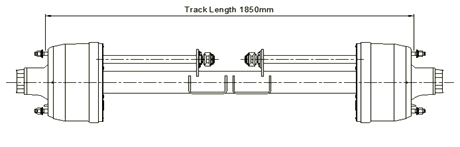

Notes:

1. 5" Round Axle - 16mm standard wall thickness, 19 & 25mm optional wall thickness.
2. 6" Square Axle - 14mm standard wall thickness.
3. Twin tyre steel wheel fixings are standard. ISO single wheel and twin tyre aluminum wheel fixings are also available.
4. Standard track length - 1850mm, other track lengths are also available.
5. All axles include standard manual slack adjuster, auto slack adjuster is optional.
6. Bearing size/type : TQ Metric 90-100 Bearing, TM Metric 65-90 Bearing, TN Imperial 2, 5/8" - 90 Bearing, TP Parallel imperial 89.6 Bearing, THU -Sealed Cartridge Bearing
7. All Axles are available with ABS ready Kits (Optional)
8. *Coarse thread wheel studs available for India market applications.
9. *5021G New features, Single Spindle Locking Nut with improved Drum Hub assembly.

Notes:

1. 5" Round Axle - 16mm standard wall thickness, 19mm -25mm optional wall thickness.
2. Twin tyre steel wheel fixings are standard. ISO single wheel and twin tyre aluminum wheel fixings are also available.
3. Standard track length - 1850mm, other track lengths are also available.
4. All axles include standard manual slack adjuster, auto slack adjuster is optional.
5. Bearing size/type : TQ Metric 90-100 Bearing, TM Metric 65-90 Bearing, TN Imperial 2, 5/8" - 90 Bearing, TP Parallel imperial 89.6 Bearing, THU -Sealed Cartridge Bearing
6. (A)- Available in Australia only.
7. All Axles are available with ABS ready Kits (Optional)
8. *Coarse thread Wheel Studs on model 7631 is only available for India market.
9. ** 2621 / 7630/ 7631 comes with new Hub greasing system .

Notes:

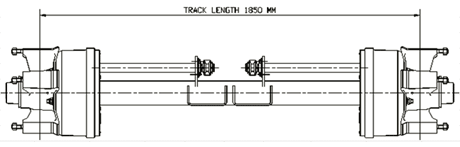

1. 5" Round Axle - 16mm standard wall thickness, 19mm -25mm optional wall thickness.
2. Twin tyre steel wheel fixings are standard. ( Trilex Wheel Rims)
3. Standard track length - 1850mm, other track lengths are also available.
4. All axles include standard manual slack adjuster, auto slack adjuster is optional.
5. Bearing size/type : TQ Metric 90-100 Bearing, TM Metric 65-90 Bearing,TN Imperial 2,5/8" - 90 Bearing, TP Parallel imperial 89.6 Bearing, THU -Sealed Cartridge Bearing
6. All Axles are available with ABS ready Kits (Optional)

Notes:

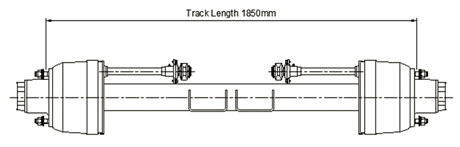

1. 5" Round Axle - 16mm-19mm thick beam is standard for 10-13 Tonnes capacity.
2. 5" Round Axle - 25mm thick beam is standard for 15 Tonnes capacity.
3. Inboard brake drums are standard.
4. Twin tyre steel wheel fixings are standard. ISO single wheel fixings are also available.
5. Standard track length - 1850mm + Australia - 1890 & 1940mm - other track lengths are also available.
6. All axles include standard manual slack adjuster, auto slack adjuster is optional.
7. Bearing size/type : TQ Metric 90-100 Bearing, TM Metric 65-90 Bearing, TN Imperial 2.5/8" - 90 Bearing, TP Parallel Imperial 89.6 Bearing, THU -Sealed Cartridge Bearing
8. All Axles are available with ABS ready Kits (Optional)

Notes:

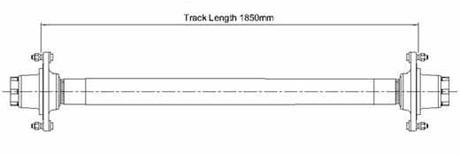

1. 5" Round Axle - 16mm-32mm standard wall thickness, 6" Square beams- 14mm is standard wall thickness.
2. Twin tyre steel wheel fixings are standard. ISO single wheel and twin tyre aluminum wheel fixings are also available.
3. Standard track length - 1850mm, other track lengths are also available.
4. Bearing size/type : TQ Metric 90-100 Bearing, TM Metric 65-90 Bearing,TN Imperial 2.5/8" - 90 Bearing, TP Parallel Imperial 89.6 bearing, THU -Sealed Cartridge Bearing

Notes:

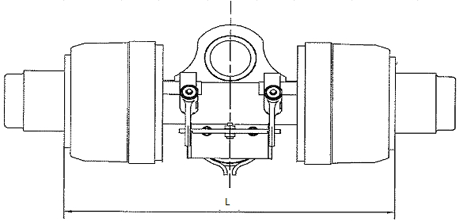

1. 5" Round Axle - 16mm thick beam is standard for 8-10 Tonnes capacity.
2. Inboard brake drums are standard.
3. Twin tyre steel wheel fixings are standard. ISO single wheel fixings are also available.
4. Min track length - 750mm, other track lengths are also available.
5. All Axles are available with ABS ready Kits (Optional)
6. Bearing size/type : TM Metric 65-90 Bearing,TN Imperial 2.5/8" - 90 Bearing.
7. Pivot blocks is according to trailer applications & customer request.
