| Up to 100 ton capacity |
| • |
Double oscillating bogies for heavy duty lowbed trailers. |
| • |
Suitable for arduous off-highway operation. |
| • |
Range of standard models and purpose built units to suit all applications. |
|
|
|

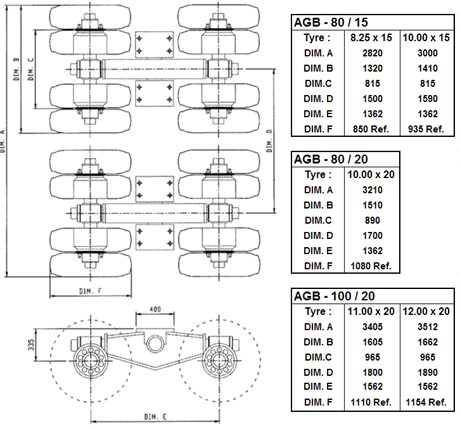

| Argonaut Bogies AGB - Over and Underslung assemblies |
| |
| Tyre size |
Wheel Fitting
No. Stud x PCD |
Capacity
Ton @ 20km/h |
Capacity
Ton @ 40km/h |
Model Number |
Approximated Weight KG |
| Twin |
8.25R15 |
ISO 10 x 225 |
60 |
46 |
AGB-80/15/MK3 |
780 |
| 10.00R15 |
70 |
52 |
780 |
| 10.00R20 |
ISO 10 x 335 |
70 |
52 |
AGB-80/20/MK2 |
880 |
| 12.00R20 |
78 |
60 |
AGB-100/20/MK2 |
1170 |
| 12.00R24 |
85 |
65 |
| Single |
24.00R21 |
ISO 10 x 335 |
85 |
65 |
AGB-100/20/MK2 |
1170 |
| 24.00R20.5 |
|
| |
 |
| |
| Notes: |
| 1) Please contact York for detailed General Arrangement drawings. |
| 2) All wheel fittings are ISO with M22 wheel stud. M24 is optional for AGB-100. |
| 2) Other Tyre Sizes and Axle centers is available on request. (E) |
|
| |
