Axle/Suspension ComponentsTrailer ABS

  ABS Systems

Introduction

A-18 System
Specially designed and made for trailer, most cost effective and reliable.
2S2M ABS system is standard for Europe semi-trailer (1-3 Axle ) operation, which can provide shorter stop distance than 2S1M system.
4S2M ABS system provide better control and tyre wear protection for semi-trailer (2-4 Axle)
4S3M ABS system is standard for Draw-bar trailer (1+1 or +2), or for 4 Axle semi-trailer which need extra control.
ABS sensor and sensor ring are installed in YORK Singapore factory, with 100 % signal tested.
8 of ready brake piping system designs, no confusion for ABS air connection.
Full installation support from YORK.
 Download Product Brochures
Technical Features

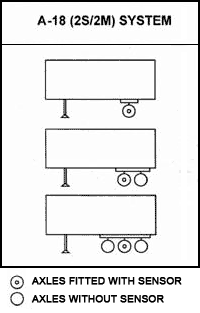

A-18 ABS SYSTEM


Configurations: 2S/2M
Super compact module:
Weight: 450g
Dimension: 120x120x75

Ready to fit wiring and cable
Power Supply:
ISO 7638 Permanent supply
ISO 1185 Stop light supply
Diagnosis socket: ISO 9141
Diagnosis blink adapter or PC

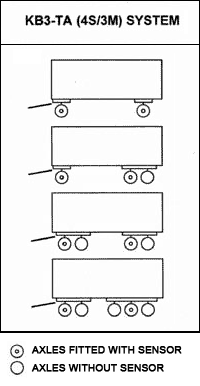

KB3-TA SYSTEM

Configurations: 4S/3M

Compact modulators with integrated silencer
Stand-alone ECU:
Preconfigured
Easy Reconfiguration
Highly flexible to fit different air brake system

Ready to fit wiring and cable
Power Supply:
ISO 7638 Permanent supply
ISO 1185 Stop light supply

Self test integrated with ECU
Diagnosis socket: ISO 9141
Diagnosis blink adapter or PC
