Brake & Un-brake Agri Axles
(05-09 tonnes capacity)
Built tough for farm and field, York’s Agri Axles deliver reliable 5 to 9 ton capacity with solid square beams for maximum durability. Available in both braked and un-braked versions with hydraulic or pneumatic options, these axles keep agricultural equipment moving strong. Choose rugged simplicity, choose York for every harvest haul.

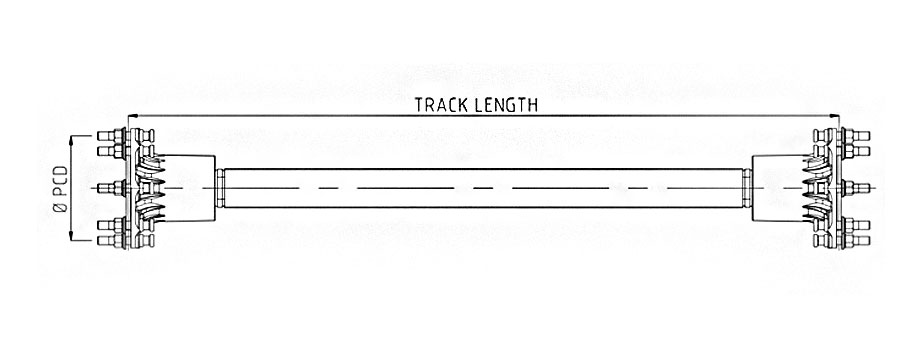

Un-brake Axle
Model Number | Capacity (Tonnes) | Bearing Size | Axle Beam & Thickness (mm) | Wheel Fixing | Axle Weights Approx.(Kg) | |
Stud & Wheel Fixing | PCD (mm) | |||||
AE20 | 05.0 | TM | □ 75 X 75 (Solid) | 08 X M20 ISO | 275 | 150 |
AJ20 | 09.0 | TM | □ 90 X 90 (Solid) | 08 x M22 ISO | 275 | 365 |
AJ50 | 09.0 | TM | □ 100 X 100 / 10 Thk. | 08 x M22 ISO | 275 | 325 |

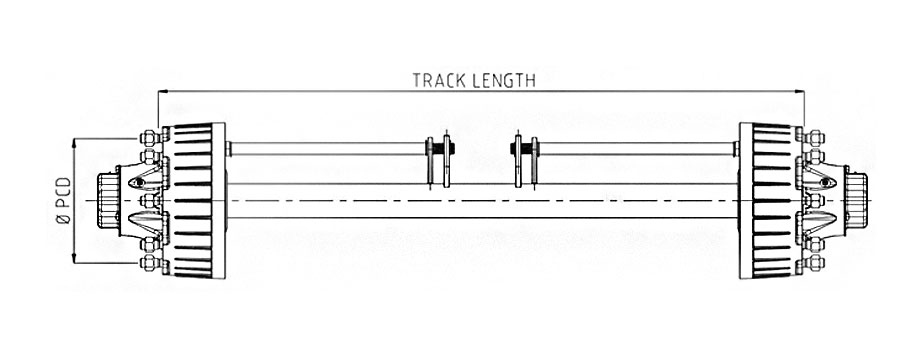

Brake Axle
Model Number | Capacity (Tonnes) | Bearing Size | Axle Beam & Thickness (mm) | Brake Size(mm) & Type | Cam Operating On | Wheel Fixing | Axle Weights Approx.(Kg) | |
Stud & Wheel Fixing | PCD (mm) | |||||||
AE21 | 05.0 | TM | □ 75 X 75 (Solid) | 307 x 100 (Q) | Hydraulic | 08 X M20 ISO | 275 | 225 |
AE22 | 05.0 | TM | □ 75 X 75 (Solid ) | 307 x 100 (Q) | Pneumatic | 08 x M22 ISO | 275 | 230 |
Notes:
- Standard track length-1550mm,other track lengths are also available upon request.
- Bearing size/type:
TM Metric Ø65-Ø80 Bearing,
- High articulation for off – highway applications.
- Pedestal brackets for bolted or welded mounting to trailer chassis.
- Other track lengths & other options available upon request
- For other option please contact with York Team.
