16T YTE75/90 FB
Mechanical Suspension Underslung Series
Designed for low-floor precision, York’s 16T Underslung Mechanical Suspension delivers a lower center of gravity for superior stability and balanced load distribution. Compact yet powerful, it’s built to handle demanding routes with confidence and control. Trust York’s underslung technology to keep your transport operations stable, efficient, and consistently dependable
Capacity | 16 Tonnes Per Module (MD Series) |
Axle Spacing | 1300 / 1360 mm (Other Axle Spacing available upon request.) |
Ride Height Range | 100-250mm (Other ride heights available upon request.) |
No. of Leaves Range | 10 Nos. |

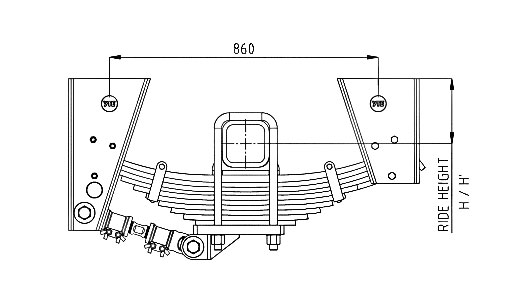

Single Axles Suspension
□ Beam Model No | ○ Beam Model No | Ride Height Description | H (mm) | H' (mm) |
MD10-U10S | MD10-U10E | Short (SH) | 135 | 105 |
MD10-U10S | MD10-U10E | Standard (ST) | 180 | 150 |
MD10-U10S | MD10-U10E | Higher ( H I ) | 210 | 180 |
Dimension
Axle Spacing C (mm) | A (mm) |
1300 | 1080 |
1360 | 1110 |
Tandem Axle Suspension
□ Beam Model No | ○ Beam Model No | Axle Spacing C (mm) | H (mm) | H' (mm) |
MD2D-U10S | MD2D-U10E | 1300 | 135 ( SH ) | 105 |
MD2E-U10S | MD2E-U10E | 1360 | 135 ( SH ) | 105 |
MD2D-U10S | MD2D-U10E | 1300 | 180 ( ST ) | 150 |
MD2E-U10S | MD2E-U10E | 1360 | 180 ( ST ) | 150 |
MD2D-U10S | MD2D-U10E | 1300 | 210 ( H I ) | 180 |
MD2E-U10S | MD2E-U10E | 1360 | 210 ( H I ) | 180 |

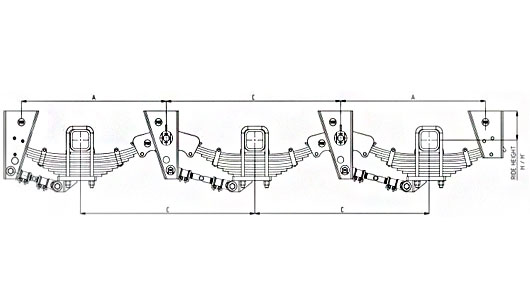

Tri Axle Suspension
□ Beam Model No | ○ Beam Model No | Axle Spacing C (mm) | H (mm) | H' (mm) |
MD3D-U10S | MD3D-U10S | 1300 | 135 ( SH ) | 105 |
MD3E-U10S | MD3E-U10E | 1360 | 135 ( SH ) | 105 |
MD3D-U10S | MD3D-U10S | 1300 | 180 ( ST ) | 150 |
MD3E-U10S | MD3E-U10E | 1360 | 180 ( ST ) | 150 |
MD3D-U10S | MD3D-U10S | 1300 | 210 ( H I ) | 180 |
MD3E-U10S | MD3E-U10E | 1360 | 210 ( H I ) | 180 |
Note:
- Where H = Unladen Height in mm
H′ = Approx. L aden Height in mm - Standard –Ertalon Bush – Optional Vesconite Bush & high life fiber bush is available.
- Suspension with 25mm spring seat configuration is also available, In which kit number ending with #MD***01
- For other option please Discuss with York Team.
- Designed to deliver uniform load distribution across tandem axles, improving vehicle stability.
- provides increased vehicle ride height and enhanced ground clearance.
- Designed to meet the requirements of heavy-duty logistics.

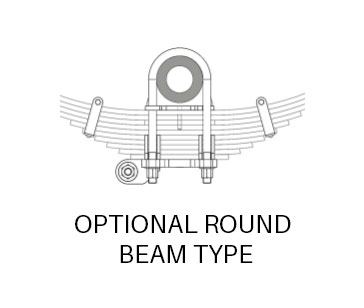

- Optional Beam : Round, Square, Rectangular.
