Spider/Spoke Axles
(10 – 20 Tonnes Capacity) In-board Drum Axles
Built for classic reliability, York’s Spider/Spoke Axles deliver rugged 10–20 tonne capacity with Trilex wheel rim compatibility and dependable in-board drum braking. Engineered for durability across diverse trailer applications, these axles combine traditional strength with modern performance. Trust York’s spoke axle for reliability your fleet can always count on.
Model Number | Capacity (Tonnes) | Bearing Size | Axle Beam & Thickness (mm) | Brake Size (mm) &Type | No. x Size of Wheel Stud x PCD (mm) | Wheel Fixing | |
Axle Weights approx.(Kg) | |||||||
6862 | 16.0 | TQ | □ 6″ / 14 Thk. | 420 x 220 (P) | 6 Spoke - 24" | Europe | 405 |
Notes:
- 5″ Round Axle – 16mm thick beam is standard for 8-10 Tonnes capacity.
- Twin tyre steel wheel fixings are standard. ISO single wheel fixings are also available.

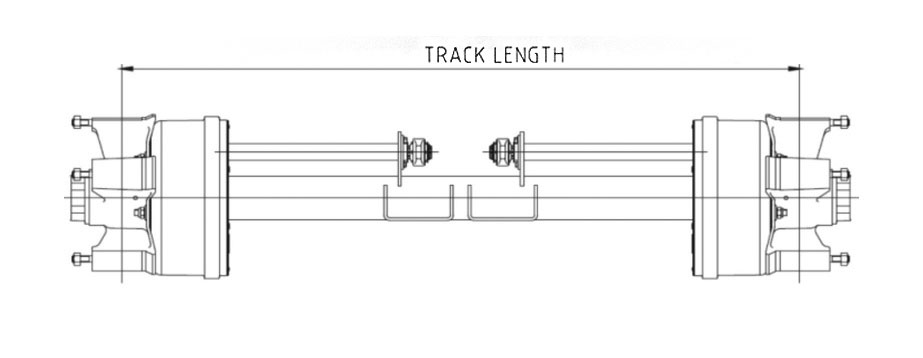

- standard. ( Trilex Wheel Rims) Standard track length – 1850mm, other track lengths are also available up to 3000mm.
- All axles include standard manual slack adjuster, auto slack adjuster is optional.
- All Axles are available with optional ABS ready Kits.
- Bearing size/type:
TQ Metric Ø90-Ø100 Bearing,
- 20 – 40 tonnes capacity
- High articulation for off -highway applications.
- 8 Stud/10 stud or 20″ & 24″ trilex hubs.
- Pedestal brackets for bolted or welded mounting to trailer chassis.
- Other track lengths & other options available upon request
- For other option please contact with York Team.
