16T YTE75/90 FB Mechanical Suspension Overslung Series
Products
16T YTE75/90 FB
Mechanical Suspension Overslung Series
Experience suspension engineered for endurance. York’s 16T Mechanical Suspension combines robust build quality with superior load-handling capability, ensuring a smoother, safer ride under demanding conditions. Designed for fleets that value performance and longevity, it’s the dependable backbone your transport operations deserve. Drive further, haul heavier!
Capacity | 16 Tonnes Per Module (MD Series) |
Axle Spacing | 1300 / 1360 / 1540mm (Other Axle Spacing available upon request.) |
Ride Height Range | 400-600mm (Other ride heights available upon request.) |
No. of Leaves Range | 10 Nos. |

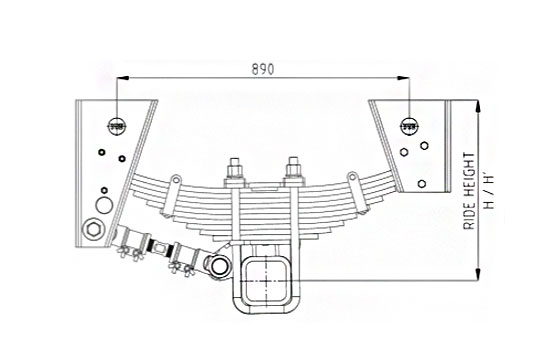

Single Axles Suspension
□ Beam Model No | ○ Beam Model No | Ride Height Description | H (mm) | H' (mm) |
MD10-V10S | MD10-V10E | Short (SH) | 520 | 490 |
MD10-V10S | MD10-V10E | Standard(ST) | 560 | 530 |
MD10-V10S | MD10-V10E | Higher( H I ) | 590 | 560 |
Dimension
Axle Spacing C (mm) | A (mm) |
1300 | 1090 |
1360 | 1120 |

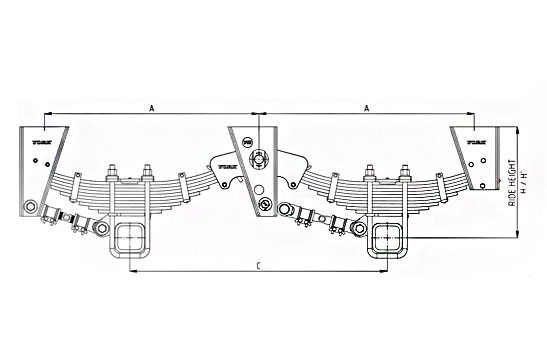

Tandem Axle Suspension
□ Beam Model No | ○ Beam Model No | Axle Spacing C (mm) | H (mm) | H' (mm) |
MD2D-V10S | MD2D-V10E | 1300 | 520 ( SH ) | 490 |
MD2E-V10S | MD2E-V10E | 1360 | 520 ( SH ) | 490 |
MD2D-V10S | MD2D-V10E | 1300 | 560 ( ST ) | 530 |
MD2E-V10S | MD2E-V10E | 1360 | 560 ( ST ) | 530 |
MD2D-V10S | MD2D-V10E | 1300 | 590 ( H I ) | 560 |
MD2E-V10S | MD2E-V10E | 1360 | 590 ( H I ) | 560 |
MD2C-V10S | MD2C-V10E | 1540 | 590 ( H I ) | 560 |

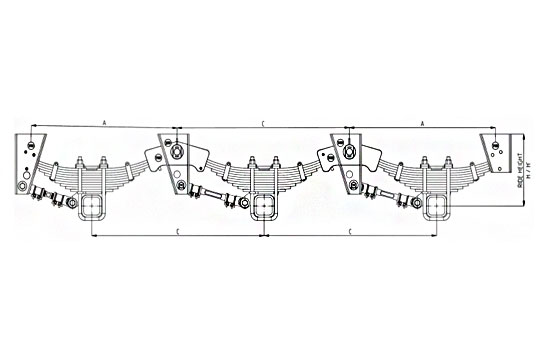

Tri Axle Suspension
□ Beam Model No | ○ Beam Model No | Axle Spacing C (mm) | H (mm) | H' (mm) |
MD3D-V10S | MD3D-V10S | 1300 | 520 ( SH ) | 490 |
MD3E-V10S | MD3E-V10S | 1360 | 520 ( SH ) | 490 |
MD3D-V10S | MD3D-V10S | 1300 | 560 ( ST ) | 530 |
MD3E-V10S | MD3E-V10S | 1360 | 560 ( ST ) | 530 |
MD3D-V10S | MD3D-V10S | 1300 | 590 ( H I ) | 560 |
MD3E-V10S | MD3E-V10S | 1360 | 590 ( H I ) | 560 |
Note:
- Where H = Unladen Height in mm
H′ = Approx. L aden Height in mm - Standard –Ertalon Bush – Optional Vesconite Bush & high life fiber bush is available.
- Suspension with 25mm spring seat configuration is also available, In which kit number ending with #MD***01
- For other options, discuss with York Team.
- Heavy-duty tandem mechanical suspension.
- Optimized load sharing between axles.
- Suitable for high payload transportation.
- Over-slung design for increased ground clearance.
- Optional Beam : Round, Square, Rectangular.
