Disc Brake Axles
(10-12 Tonnes Capacity)
Experience superior braking power with York’s Disc Brake Axles, built for 10 to 12 tonnes capacities with precision rotors and durable round axle beams. Designed for fleets that demand sharper control and consistent braking performance, these axles deliver confidence on every stop. Choose York for smarter, safer, high-performance transport.
Model Number | Capacity (Tonnes) | Bearing Size | Axle Beam & Thickness (mm) | Rotor Size (mm) | Wheel Fixing | Axle Weights Ap15prox.(Kg) | ||
Stud & Wheel Fixing | PCD (mm) | Wheel Bore Dia.(mm) | ||||||
7N02X | 11.0 | TN | ○ 5″ / 16 Thk. | Ø 430 | 10 x M22 / ISO | 285 | 220 | 315 |
7N03X | 12.0 | TN | ○ 5″ / 16 Thk. | Ø 430 | 10 x M22 / ISO | 335 | 281 | 335 |
Notes:
- 5″ Round Axle – 19mm optional wall thickness
- Twin tyre steel wheel fixings are standard ISO single wheel & twin tyre alluminium wheel fixing are also available.

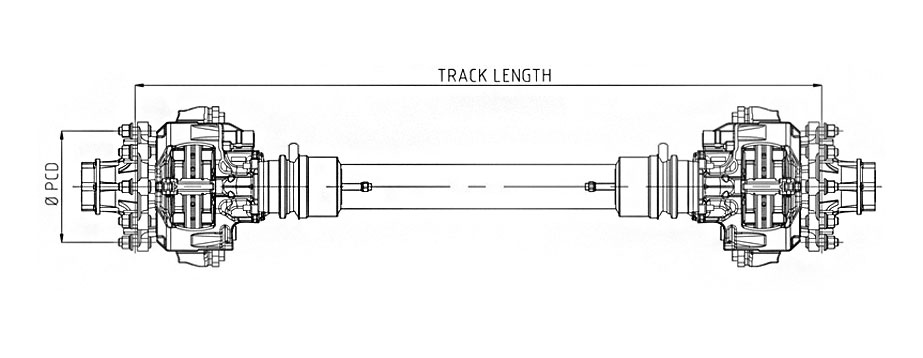

- Standard track length – 1850mm, other track lengths are also available up to 3000mm.
- All Axles are available with optional ABS ready Kits.
- Bearing size/type:
TN Imperial 2,5/8″-Ø90 Bearing,
- 5″ Round beam Built to handle the toughest loads.
- High life TM bearing with long Life Grease.
- Heavy-duty disc brake system for reliable, fade-free braking performance.
- M22 Studs to withstand demanding axle loads.
- Reinforced hub assembly for superior durability and stability. Forged solid spindles with Induction hardening.
- Axles Available with ABS, & Non ABS.
- High-grade brake friction materials ensure consistent and safe braking.
- Suitable for Flat Bed & Side Wall Trailer.
