Semi Trailer Landing Gears
Strength meets stability with York Transport’s Semi Trailer Landing Gear. Purpose-built for medium and heavy-duty operations, its heavy-duty tubular construction ensures unwavering support under full vertical loads. Whatever the trailer, whatever the application, these landing gears keeps your operation grounded and secure.

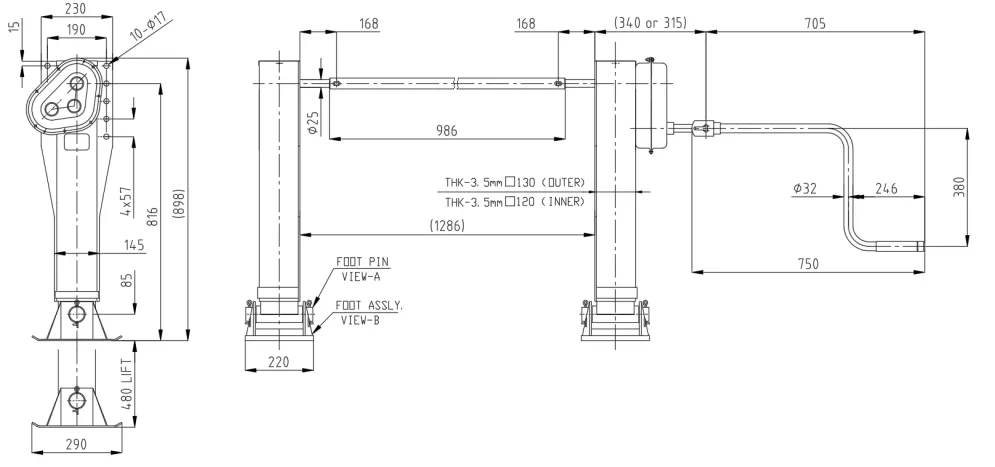

YT‐25A‐1

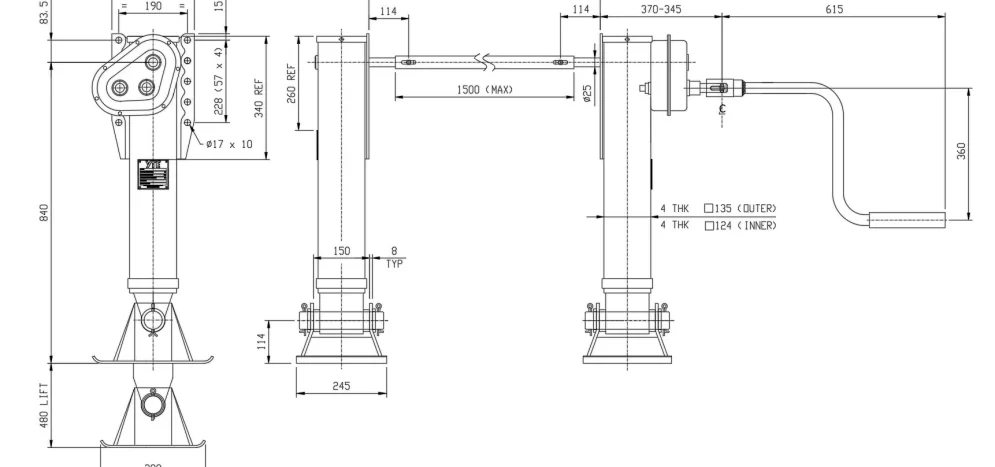

YT‐28A‐2

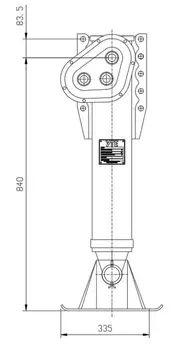

YT‐28A

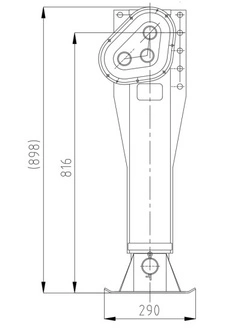

YT‐25A-1
Specification | YT‐28A | YT‐25A |
Static Load (Kg) | 40000 | 35000 |
Lift Capacity (Kg) | 28000 | 25000 |
Max Travel (mm) | 480 | 480 |
High Gear (mm) | 5.42 | 5.42 |
Low Gear (mm) | 0.72 | 0.72 |
Retract Height (mm) | 840 | 816 |
Standard Weight (kg) | 110 | 110 |
Crank Force (kg) | 22 | 22 |
Side Load Capacity (kg) | 13000 | 13000 |
YT‐28A
YT‐25A-1
Specification | YT‐28A | YT‐25A |
Static Load (Kg) | 40000 | 35000 |
Lift Capacity (Kg) | 28000 | 25000 |
Max Travel (mm) | 480 | 480 |
High Gear (mm) | 5.42 | 5.42 |
Low Gear (mm) | 0.72 | 0.72 |
Retract Height (mm) | 840 | 816 |
Standard Weight (kg) | 110 | 110 |
Crank Force (kg) | 22 | 22 |
Side Load Capacity (kg) | 13000 | 13000 |
Foot Options
Standard Swivel Foot (SF)
Compensating Foot (CF) For Air Suspension
Notes:
- Please contact York for detailed General Arrangement drawings.
- Single gear & Double gear configuration is available on request.
- For other option please contact with York Team.
- Built to Carry the Heavyweights — Takes on static loads up to 40,000 kg with rock-solid support and stability.
- Serious Lifting Power — Delivers up to 28,000 kg lifting capacity to handle demanding trailer operations with confidence.
- Fast When You Need It— Dual-speed gearing combines quicker operation with precise, controlled lifting.
- Stability That Stands Strong — Handles side loads up to 13,000 kg, keeping heavy-duty trailers firmly supported.
- Versatility Built In — Swivel and compensating foot options, plus single or double gear configurations, make it ready for diverse trailer applications.
