Standard Axles
(12 – 15 Tonnes Capacity) with In-board Brake Drum
The 2021 Standard Axle isn’t just another component; it’s a smart upgrade built to push your business further, faster, and with total confidence. Engineered for heavy-duty 12-ton demands, it transforms everyday hauling into a seamless, powerful experience. Customizable, dependable, and future-ready!
Model Number | Capacity (Tonnes) | Bearing Type | Axle Beam & Thickness (mm) | Brake Size (mm)& Type | WHEEL FIXING | Axle Weights Approx (Kg) | ||
Stud & Wheel Fixing | PCD (mm) | Wheel Bore Dia(mm) | ||||||
2021 | 12.0 | TM | ○ 5"/16 Thk | 420X180 (Q) | 10XM22/ISO | Ø 335 | Ø 281 | 338 |
Notes:
- For 5″Round Axle – 19 & 25mm optional wall thickness Available.
- Twin tyre steel wheel fixings are standard. ISO single wheel and twin tyre aluminum wheel fixings are also available.

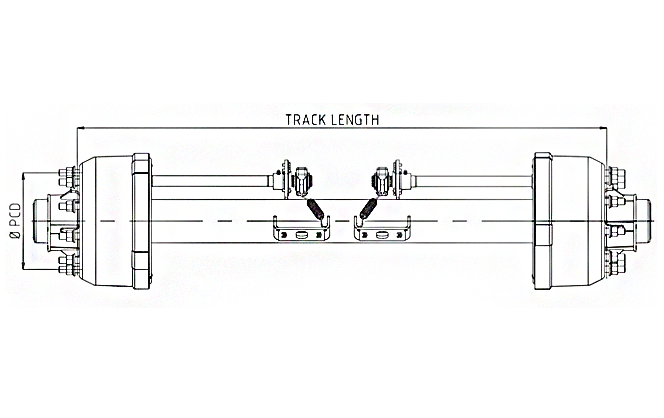

- Standard track length – 1850mm, other track lengths are also available up to 3000mm.
- All axles include standard manual slack adjuster, auto slack adjuster is optional.
- All Axles are available with optional ABS ready Kits.
- 5021G new features, Single spindle Locking Nut With Improved Drum Hub Assembly
- Coarse thread wheel studs available for India market applications.
- Bearing size/type: TM Metric Ø65-Ø90 Bearing
- Built to confidently handle demanding 12-15 tonne heavy-duty applications.
- Engineered with a robust 5″ round axle beam for strength you can rely on.
- Offers flexible track lengths up to 3000 mm to suit diverse trailer requirements.
- Supports multiple wheel fixing options for greater application flexibility.
- Ready for smarter braking with optional ABS kits and automatic slack adjusters.
