Low Bed Axles
(8.0 – 15.0 Tonnes Capacity) With In-Board Drum
York’s Low Bed Axles combine compact in-board brake design with robust beam strength, supporting 8 to 15 tonnes loads with ease and precision. Engineered for low-profile transport where stability matters most, these axles deliver smooth performance and reliable control, the smart choice for fleets that carry heavy loads low and steady.
Model Number | Capacity (Tonnes) | Bearing Size | Axle Beam & Thickness (mm) | Brake Size (mm)& Type | Wheel Fixing | Axle Weights Approx.(Kg) | ||
Stud & Wheel Fixing | PCD (mm) | Wheel Bore Dia.(mm) | ||||||
9501 | 12.0 | TM | ○ 5″ / 16 Thk. | 311 x 178 (P) | 10 x M22 / ISO | 225 | 176 | 325 |
9506 | 12.0 | TM | ○ 5″ / 16 Thk. | 311 x 178 (P) | 10 x M22 / ISO | 225 | 176 | 325 |
9511 | 13.0 | TM | ○ 5″ / 19 Thk. | 311 x 178 (P) | 10 x M22 / ISO | 225 | 176 | 340 |
9508 | 15.0 | TM | ○ 5″ / 25 Thk. | 311 x 178 (P) | 10 x M22 / ISO | 225 | 176 | 365 |
Notes:
- 5″ Round Axle – 16mm-19mm thick beam is standard for 10-13 Tonnes capacity.
- 5″ Round Axle – 25mm thick beam is standard for 15 Tonnes capacity.
- Twin tyre steel wheel fixings are standard ISO single wheel fixings are also available.

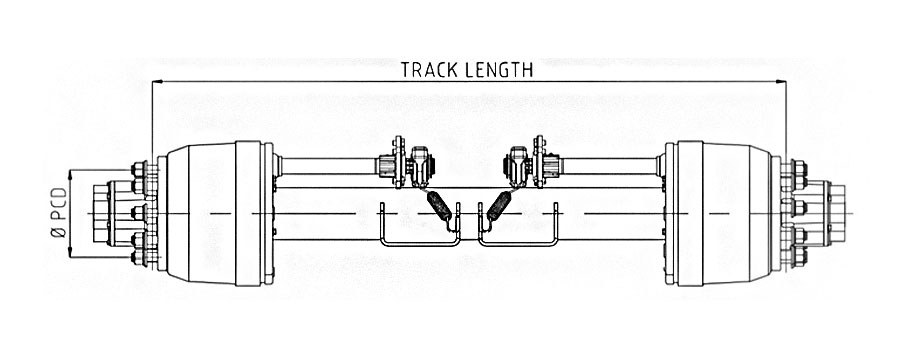

- Standard track length – 1850mm, other track lengths are also available up to 3000mm.
- All axles include standard manual slack adjuster, auto slack adjuster is optional.
- All Axles are available with optional ABS ready Kits.
- Bearing size/type:
TM Metric Ø65-Ø90 Bearing,
- Built for Heavy-Duty Loads: Handles demanding 8–15 tonne applications with robust axle construction for dependable low-bed transport.
- Strength That Matches the Load: Heavy-duty 5″ round axle beams with thicknesses up to 25 mm deliver added strength for higher-capacity hauling.
- Compact In-Board Braking: 311 × 178 mm in-board drum brakes provide reliable braking performance while supporting a practical low-profile axle design.
- Flexible to Fit Your Fleet: Standard 1850 mm track length with options available up to 3000 mm, plus twin-tyre and ISO single-wheel fixing choices.
- Ready for Smarter Safety: Comes standard with manual slack adjusters, with optional auto slack adjusters and ABS-ready kits for enhanced braking control.
