18T BELL CRANK
Mechanical Suspension
Precision-engineered for maximum capacity, York’s 18T Bell Crank Mechanical Suspension offers unmatched stability through its innovative crank mechanism, ensuring consistent performance across tandem-axle configurations. Ideal for fleets that demand dependable strength. Choose York for advanced suspension solutions built to handle heavier loads with confidence and control.
Capacity | 18 Tonnes Per Module (MJ Series) |
Axle Spacing | 1540/1810mm (Other Axle Spacing available upon request.) |
Ride Height Range | 500-600mm (Other ride heights available upon request.) |
No. of Leaves Range | 10 Nos. |

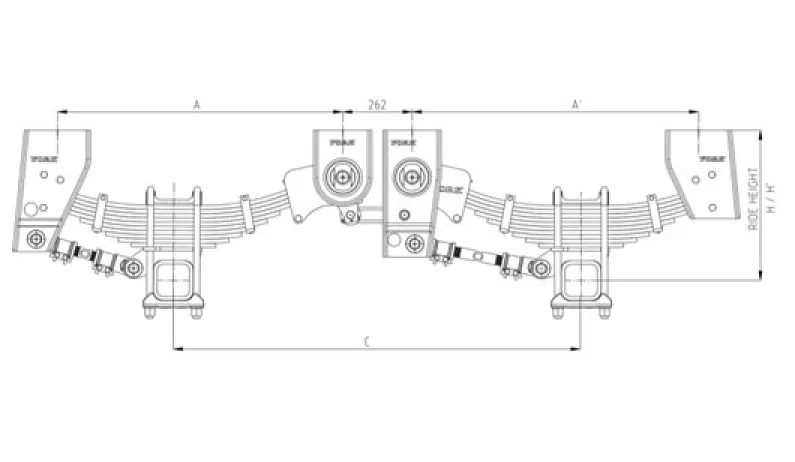

Tandem‐Axle Suspension (1540mm Spacing)
No. of Axle | □ Beam Model No | Axle Spacing C (mm) | A (mm) | A’ (mm) | Std. unladen Height H (mm) | Approx. laden Height H' (mm) |
Tandem | MJ2C-V14S-RBNK-02 | 1540 | 1074 | 1082 | 565 | 535 |

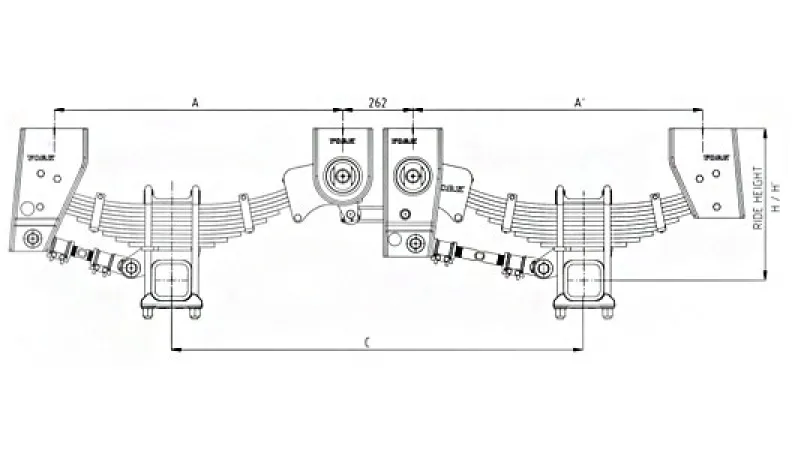

Tandem‐Axle Suspension (1810mm Spacing)
No. of Axle | □ Beam Model No | Axle Spacing C (mm) | A (mm) | A’ (mm) | Std. unladen Height H (mm) | Approx. laden Height H' (mm) |
Tandem | MJ2X-V14S-RBNK-02 | 1810 | 1074 | 1082 | 565 | 535 |
Note:
- Standard –Ertalon Bush – Optional Vesconite Bush & high life fiber bush is available.
- For other option please refer Page No. 21 & Discuss with York Team.
- Heavy-duty leaf spring design.
- Low maintenance construction with wearresistant bushes, forged wear pads.
- Reduced tire wear.
- Reliable performance under heavy loads.
- Optional Beam: Square, Round.
