16T BELL CRANK
Mechanical Suspension
Engineered for exceptional load balance, York’s 16T Bell Crank Mechanical Suspension delivers superior stability and smooth articulation across tandem-axle configurations. Its advanced design ensures even weight distribution and controlled handling under heavy loads. Trust York to power your fleet with cutting-edge suspension built for real-world toughness.
Capacity | 16 Tonnes Per Module (MD Series) |
Axle Spacing | 1540/1810mm (Other Axle Spacing available upon request.) |
Ride Height Range | 500-600mm (Other ride heights available upon request.) |
No. of Leaves Range | 10 Nos. |

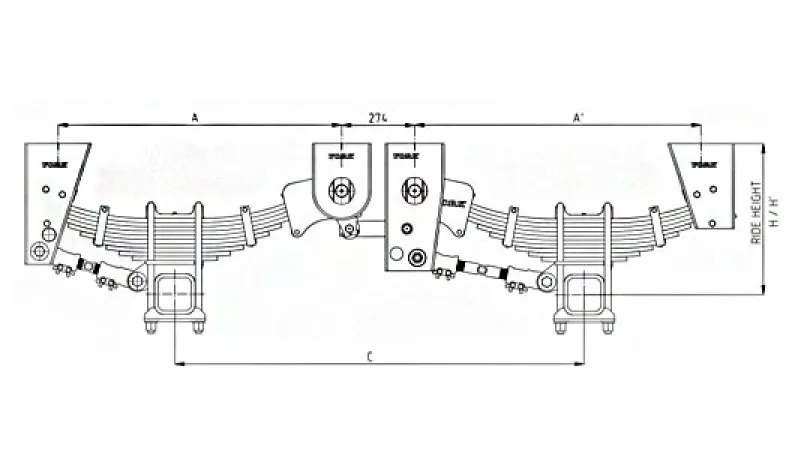

Tandem‐Axle Suspension (1540mm Spacing)
No. of Axle | □ Beam Model No | Axle Spacing C (mm) | A (mm) | A’ (mm) | Std. unladen Height H (mm) | Approx. laden Height H' (mm) |
Tandem | MD2C-V14S--RBNK-02 | 1540 | 1065 | 1076 | 565 | 535 |

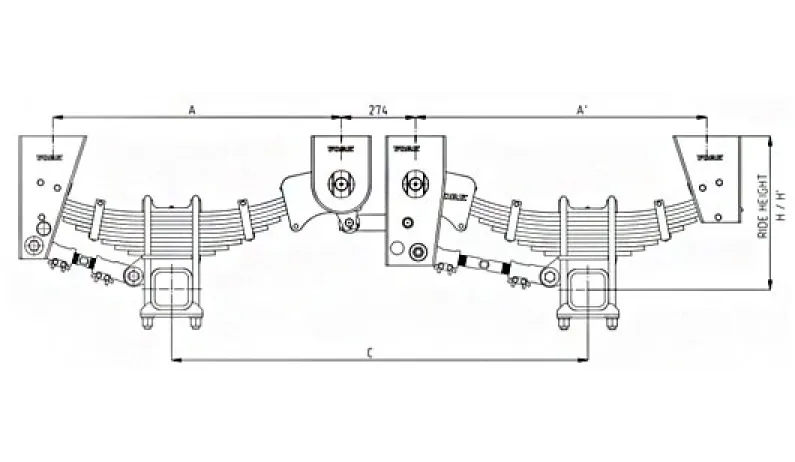

Tandem‐Axle Suspension (1810mm Spacing)
No. of Axle | □ Beam Model No | Axle Spacing C (mm) | A (mm) | A’ (mm) | Std. unladen Height H (mm) | Approx. laden Height H' (mm) |
Tandem | MD2X-V14S-RBNK-02 | 1810 | 1065 | 1076 | 565 | 535 |
Note:
- Standard –Ertalon Bush – Optional Vesconite Bush & high life fiber bush is available.
- For other option please refer Page No. 21 & Discuss with York Team.
- Good load sharing between axles.
- Increased suspension life due to rugged construction.
- Suitable for long-distance vehicle transportation.
- Reinforced equalizer beam for severe-duty applications.
- Optional Beam :Square, Round.
