Standard Axles
(12 – 13 Tonnes Capacity) with Out-board Brake Drum
York’s Standard Axles (12 – 13 Tonnes Capacity) with Out-board Brake Drum deliver rock-solid reliability, mile after mile. Built for heavy-duty transport, these axles combine rugged strength with smooth, dependable braking to keep your fleet moving safely and efficiently. Durable, dependable, and designed to maximize uptime.
Model Number | Capacity (Tonnes) | Bearing Size | Axle Beam & Thickness (mm) | Brake Size (mm)& Type | Wheel Fixing | Axle Weights Approx.(Kg) | ||
Stud & Wheel Fixing | PCD (mm) | Wheel Bore Dia.(mm) | ||||||
2N02 | 12.0 | TN | ○ 5″ / 16 Thk. | 420 x 180 (Q) | 10 x M22 / ISO | Ø285 | Ø223 | 332 |
2N03 | 12.0 | TN | ○ 5" / 16 Thk. | 420 x 180 (Q) | 10 x M22 / ISO | Ø335 | Ø281 | 335 |
2625 | 12.0 | TM | ○ 5″ / 16 Thk. | 420 x 180 (Q) | 10 x M22 / ISO | Ø335 | Ø281 | 364 |
2626 | 12.0 | TM | ○ 5″ / 16 Thk. | 420 x 180 (Q) | 10 x M22 / ISO | Ø335 | Ø281 | 358 |
2P22 | 12.0 | TP | ○ 5″ / 16 Thk. | 420 x 180 (Q) | 10 x M22 / ISO | Ø335 | Ø281 | 362 |
2691 | 12.0 | TN | ○ 5″ / 14 Thk. | 420 x 180 (Q) | 10 x M22 / ISO | Ø285 | Ø220 | 310 |
6620 | 13.0 | TM | □ 6″ / 14 Thk. | 420 x 180 (Q) | 10 x M22 / ISO | Ø335 | Ø281 | 363 |
6625 | 13.0 | TM | □ 6″ / 14 Thk. | 420 x 180 (Q) | 10 x M22 / ISO | Ø335 | Ø281 | 342 |
5610 | 13.0 | TM | □ 6″ / 14 Thk. | 420 x 140 (Q) | 10 x M22 / ISO | Ø335 | Ø281 | 342 |
2690 | 13.0 | TM | ○ 5″ / 14 Thk. | 420 x 140 (Q) | 10 x M22 / ISO | Ø335 | Ø281 | 342 |
Notes:
- For 5″ Round Axle – 19mm -25mm optional wall thickness available.
- Twin tyre steel wheel fixings are standard. ISO single wheel and twin tyre aluminum wheel fixings are also available.

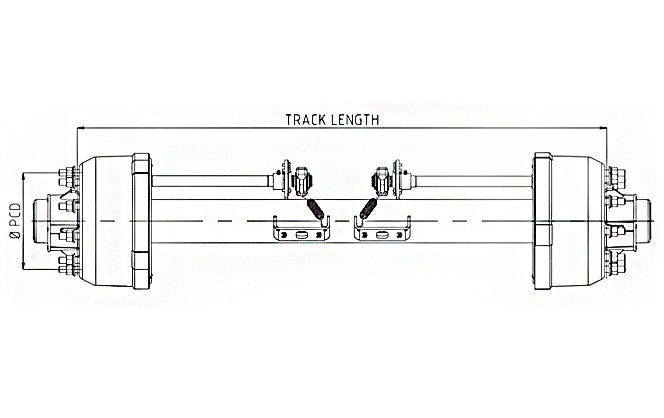

- Standard track length – 1850mm, other Tracks lengths are also available up to 3000mm
- All axles include standard manual slack adjuster, auto slack adjuster is optional.
- All Axles are available with optional ABS ready Kits.
- Bearing size/type:
TM Metric Ø65-Ø90Bearing,
TN Imperial 2,5/8″-Ø90Bearing,
TP Parallel imperialØ89.6 Bearing
- Built for Heavy-Duty Hauling – Engineered for 12–13 tonne capacity, delivering dependable strength for demanding transport operations.
- Powerful, Dependable Braking – Equipped with robust 420 mm out-board brake drums for confident and consistent braking performance.
- Rugged Axle Beam Construction – Available with 5″ round and 6″ square axle beams, built to handle tough loads and challenging road conditions.
- Flexible to Fit Your Fleet – Multiple bearing, wheel-fixing and track-length configurations, with track lengths available up to 3000 mm.
- Ready for Smarter Safety – Comes standard with a manual slack adjuster, with optional automatic slack adjuster and ABS-ready kits for enhanced braking control.
