18T YTE 90 FB Mechanical Suspension Overslung Series
Products
18T YTE 90 FB
Mechanical Suspension Overslung Series
Built for heavy-duty reliability, York’s 18T YTE 90 FB Mechanical Suspension delivers exceptional strength and stability across varied axle configurations. Its robust overslung design ensures smooth handling and consistent load support on tough terrains. Trust York to deliver rugged, high-capacity suspension solutions that keep your fleet moving, mile after mile.
Capacity | 18 Tonnes Per Module (MJ Series) |
Axle Spacing | 1300/1410/1540mm (Other Axle Spacing available upon request.) |
Ride Height Range | 500-600mm (Other ride heights available upon request.) |
No. of Leaves Range | 10 Nos. |

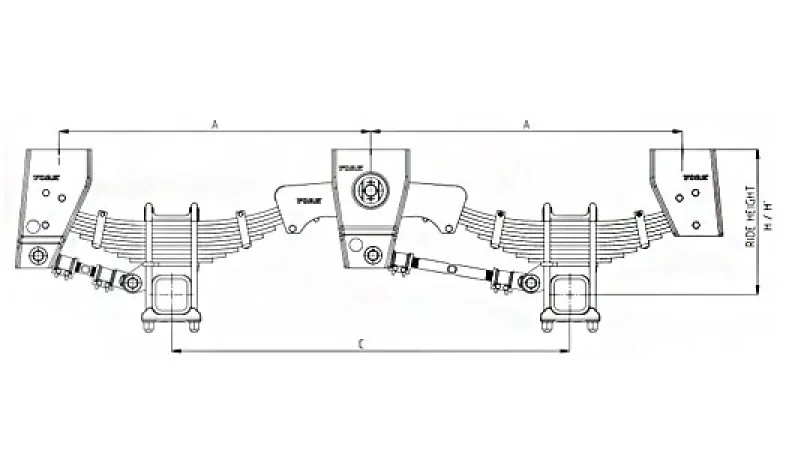

Tandem‐Axle Suspension (1300mm Spacing)
No. of Axle | □ Beam Model No | ○ Beam Model No | Axle Spacing C (mm) | A (mm) | Std. unladen Height H (mm) | H' (Approx. laden Height H' (mm)) |
Tandem | MJ2D-V10S | MJ2D-V10E | 1300 | 1088 | 565 | 535 |

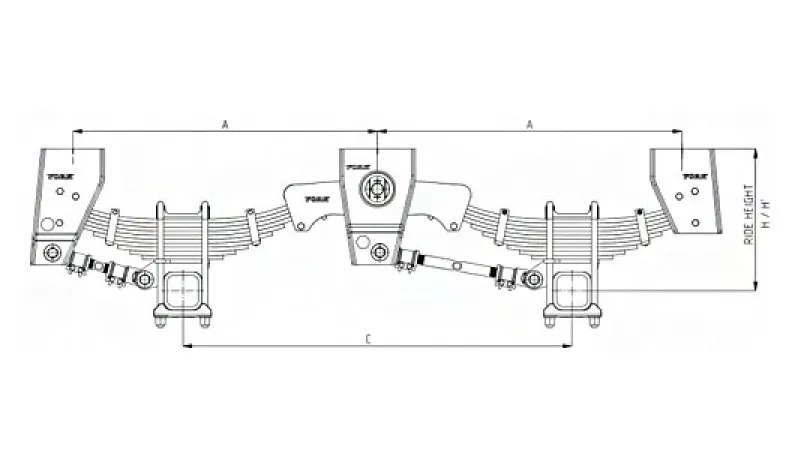

Tandem‐Axle Suspension (1410mm Spacing)
No. of Axle | □ Beam Model No | ○ Beam Model No | Axle Spacing C (mm) | A (mm) | Std. unladen Height H (mm) | H' (Approx. laden Height H' (mm)) |
Tandem | MJ2D-V10S | - | 1410 | 1144 | 565 | 535 |

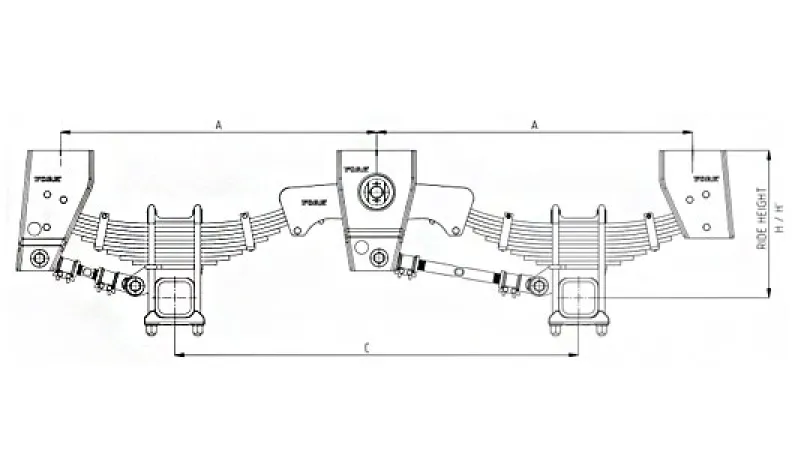

Tandem‐Axle Suspension (1540mm Spacing)
No. of Axle | □ Beam Model No | ○ Beam Model No | Axle Spacing C (mm) | A (mm) | Std. unladen Height H (mm) | H' (Approx. laden Height H' (mm)) |
Tandem | MJ2C-V14S | MJ2C-V10E | 1540 | 1074 | 565 | 535 |
Note:
- Standard –Ertalon Bush – Optional Vesconite Bush & high life fiber bush is available.
- For other option please refer Page No. 21 & Discuss with York Team.
- High-strength welded construction for trailer chassis.
- Designed for rugged road and off-road operating conditions.
- Balances load between axles for improved stability.
- Lower purchase and maintenance costs
- Optional Beam : Square, Round.
