14T YTE75 FB HD Mechanical Suspension Overslung Series
Products
14T YTE75 FB HD
Mechanical Suspension Overslung Series
Built tough for heavy-duty demands, York’s 14T Overslung Mechanical Suspension HD delivers exceptional strength, stability, and durability across challenging terrains. Engineered to withstand rigorous operations while ensuring a smooth, controlled ride. Experience uncompromising performance that keeps your fleet running strong and safe.
Capacity | 14 Tonnes Per Module (MC Series) |
Axle Spacing | 1300 / 1360mm (Other Axle Spacing available upon request.) |
Ride Height Range | 400-600mm (Other ride heights available upon request.) |
No. of Leaves Range | 11 Nos. |

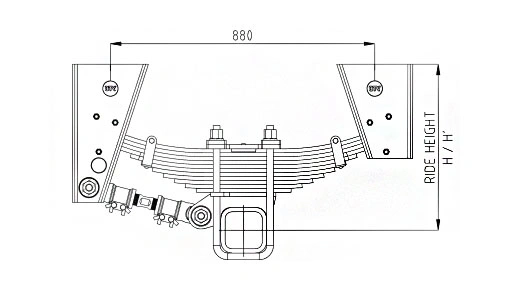

Single Axles Suspension
□ Beam Model No | ○ Beam Model No | Ride Height Description | H (mm) | H' (mm) |
MC10-V11S | MC10-V11R | Short (SH) | 500 | 470 |
MC10-V11S | MC10-V11R | Standard (ST) | 545 | 515 |
MC10-V11S | MC10-V11R | Higher (HI) | 575 | 545 |
Dimension
Axle Spacing C (mm) | A (mm) |
1300 | 1090 |
1360 | 1120 |

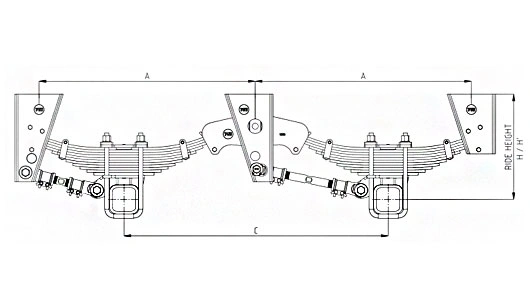

Tandem Axle Suspension
□ Beam Model No | ○ Beam Model No | Axle Spacing C (mm) | H (mm) | H' (mm) |
MC2D-V11S | MC2D-V11R | 1300 | 500 ( SH ) | 470 |
MC2E-V11S | MC2E-V11R | 1360 | 500 ( SH ) | 470 |
MC2D-V11S | MC2D-V11R | 1300 | 545 ( ST ) | 515 |
MC2E-V11S | MC2E-V11R | 1360 | 545 ( ST ) | 515 |
MC2D-V11S | MC2D-V11R | 1300 | 575 ( H I ) | 545 |
MC2E-V11S | MC2E-V11R | 1360 | 575 ( H I ) | 545 |

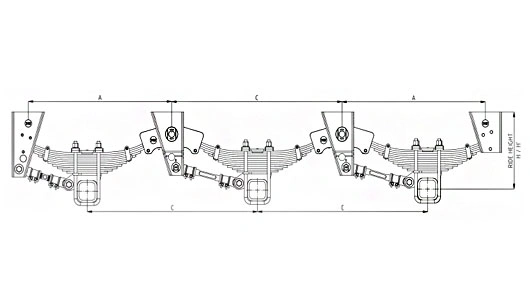

Tri Axle Suspension
□ Beam Model No | ○ Beam Model No | Axle Spacing C (mm) | H (mm) | H' (mm) |
MC3D-V11S | MC3D-V11R | 1300 | 500 ( SH ) | 470 |
MC3E-V11S | MC3E-V11R | 1360 | 500 ( SH ) | 470 |
MC3D-V11S | MC3D-V11R | 1300 | 545 ( ST ) | 515 |
MC3E-V11S | MC3E-V11R | 1360 | 545 ( ST ) | 515 |
MC3D-V11S | MC3D-V11R | 1300 | 575 ( H I ) | 545 |
MC3E-V11S | MC3E-V11R | 1360 | 575 ( H I ) | 545 |
Note:
- Where H = Unladen Height in mm
H′ = Approx. L aden Height in mm - Standard –Ertalon Bush – Optional Vesconite Bush & high life fiber bush is available.
- Suspension with 25mm spring seat configuration is also available, In which kit number ending with #MC***S1
- For other options, discuss with York Team.
- Up to 100 -ton capacity
- Double oscillating bogies for heavy duty lowbed trailers.
- Suitable for arduous off -highway operation.
- Range of standard models and purpose -built units to suit all applications
