Dreadnought 20 to 40 tonnes Low Mounting Tandem Bogie
Products
DreadnoughtÂ
Tonnes Low Mounting Tandem Bogie
Engineered for effortless stability, the Dreadnought Low Mounting Tandem Bogie brings your trailer closer to the ground and closer to perfection. Its smart low-mount architecture enhances control, reduces sway, and boosts confidence on every haul. When heavy tonnage meets demanding roads, Dreadnought delivers strength that stays firmly grounded.

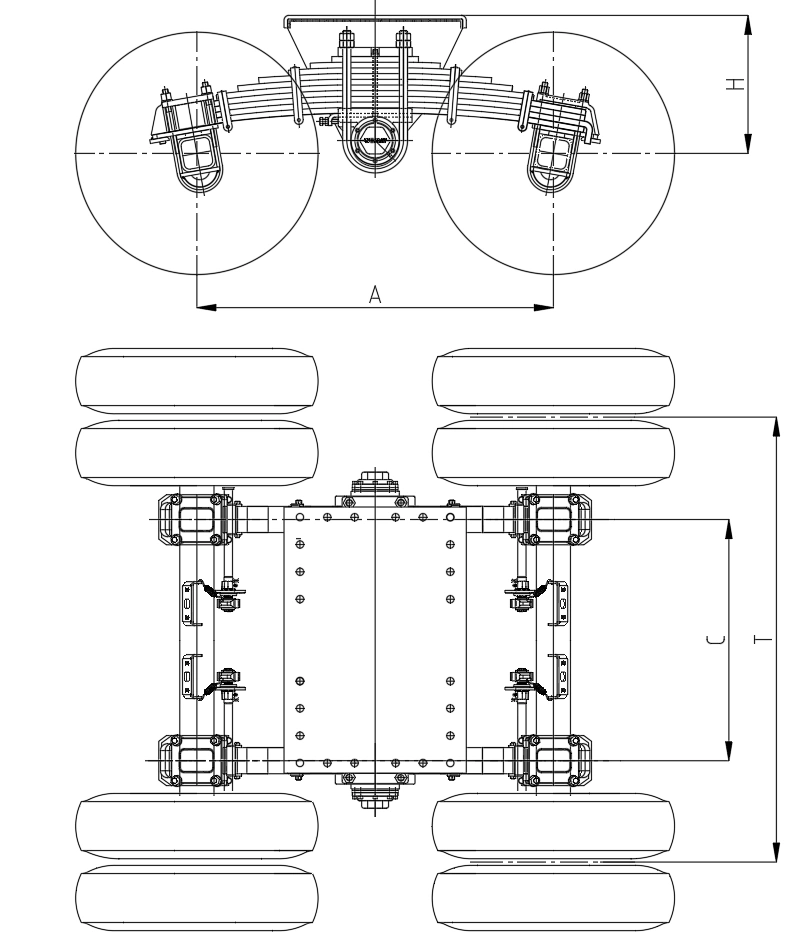

Dreadnought 20 to 40 tonnes High Mounting Tandem Bogie

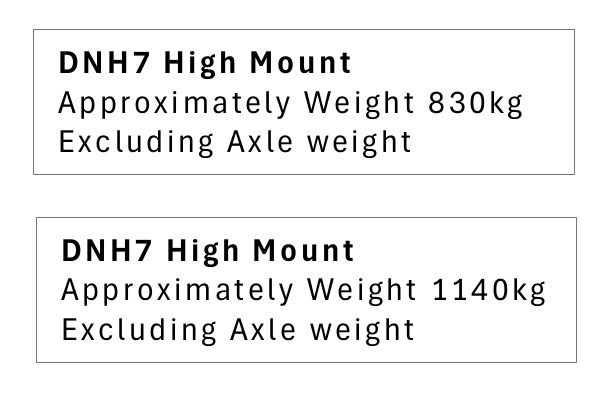

DNH7 High MountÂ
Model Number | Capacity @ 80km/h (highway) (Tonnes) | Capacity@ 60km/h(Off Road)(Tonnes) | Axle Beam | ‘C’ Spring (mm) | ‘A’ Axle Spacing | H Heights (mm) | T’ Track Length (mm) |
DNH7-Plus | 30 | 24 | □ 6″ | 880 | 1430 | 560 | 1850 |
DNH7S-Plus | 30 | 24 | □ 6″ | 880 | 1430 | 606 | 1850 |
DNH8 High Mount
Model Number | Capacity @ 80km/h (highway) (Tonnes) | Capacity@ 60km/h(Off Road)(Tonnes) | Axle Beam | ‘C’ Spring (mm) | ‘A’ Axle Spacing | H Heights (mm) | T’ Track Length (mm) |
DNH8S/MK2/0880 | 40 | 32 | □ 6″ | 880 | 1430 | 606 | 1850-1950 |
DNH8/MK2/0880 | 40 | 32 | ○ 6″ | 880 | 1430 | 609 | 1850-1950 |
Dreadnought 20 to 40 tonnes Low Mounting Tandem Bogie

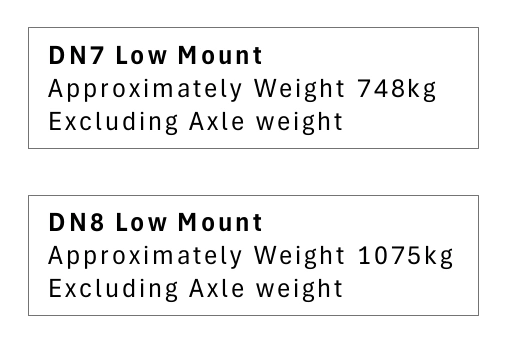

DN7 Low Mount
Model Number | Capacity @ 80km/h (highway) (Tonnes) | Capacity @ 40km/h (Off Road) (Tonnes) | Axle Beam | ‘C’ Spring (mm) | ‘B’ Stool (mm) | ‘A’ Axle Spacing | Heights (mm) | ‘T’ Track Length (mm) | |
H | H1 | ||||||||
DN7/MK2/0900 | 30 | 24 | ○ 5″ | 900 | 580 | 1430 | 245 | 510 | 1850 |
DN7S/MK2/0900 | 30 | 24 | □ 6″ | 900 | 580 | 1430 | 265 | 530 | 1850 |
DN8 Low Mount
Model Number | Capacity @ 80km/h (highway) (Tonnes) | Capacity @ 40km/h (Off Road) (Tonnes) | Axle Beam | ‘C’ Spring (mm) | ‘B’ Stool (mm) | ‘A’ Axle Spacing | Heights (mm) | ‘T’ Track Length (mm) | |
H | H1 | ||||||||
DN8S/880 | 40 | 32 | □ 6″ | 880 | 490 | 1490 | 260 | 465 | 1850 |
DN8/880 | 40 | 32 | ○ 6″ | 880 | 490 | 1490 | 260 | 468 | 1850 |
- Heavy-Duty Load Capacity — Built to handle up to 40 tonnes on highways and 32 tonnes off-road for demanding heavy-haul operations.
- Low-Mount Stability — Engineered with a low mounting height to keep heavy loads closer to the ground for enhanced stability and confident handling.
- Rugged Axle Construction — Available with robust 5″ and 6″ round or square axle beams to deliver dependable strength under challenging loads.
- Optimised Tandem Geometry — Precisely engineered 1430–1490 mm axle spacing supports balanced load distribution and stable performance across varied terrain.
- Built for Highway & Off-Road Performance — Designed to deliver reliable carrying capability at highway speeds, while staying tough for demanding off-road applications.
Dreadnought 20 to 40 tonnes High Mounting Tandem Bogie
DNH7 High MountÂ
Model Number | Capacity @ 80km/h (highway) (Tonnes) | Capacity@ 60km/h(Off Road)(Tonnes) | Axle Beam | ‘C’ Spring (mm) | ‘A’ Axle Spacing | H Heights (mm) | T’ Track Length (mm) |
DNH7-Plus | 30 | 24 | □ 6″ | 880 | 1430 | 560 | 1850 |
DNH7S-Plus | 30 | 24 | □ 6″ | 880 | 1430 | 606 | 1850 |
DNH8 High Mount
Model Number | Capacity @ 80km/h (highway) (Tonnes) | Capacity@ 60km/h(Off Road)(Tonnes) | Axle Beam | ‘C’ Spring (mm) | ‘A’ Axle Spacing | H Heights (mm) | T’ Track Length (mm) |
DNH8S/MK2/0880 | 40 | 32 | □ 6″ | 880 | 1430 | 606 | 1850-1950 |
DNH8/MK2/0880 | 40 | 32 | ○ 6″ | 880 | 1430 | 609 | 1850-1950 |
Dreadnought 20 to 40 tonnes Low Mounting Tandem Bogie
DN7 Low Mount
Model Number | Capacity @ 80km/h (highway) (Tonnes) | Capacity @ 40km/h (Off Road) (Tonnes) | Axle Beam | ‘C’ Spring (mm) | ‘B’ Stool (mm) | ‘A’ Axle Spacing | Heights (mm) | ‘T’ Track Length (mm) | |
H | H1 | ||||||||
DN7/MK2/0900 | 30 | 24 | ○ 5″ | 900 | 580 | 1430 | 245 | 510 | 1850 |
DN7S/MK2/0900 | 30 | 24 | □ 6″ | 900 | 580 | 1430 | 265 | 530 | 1850 |
DN8 Low Mount
Heavy Duty Argonought Bogie
- Up to 100 -ton capacity
- Double oscillating bogies for heavy duty lowbed trailers.
- Suitable for arduous off -highway operation.
- R ange of standard models and purpose -built units to suit all applications
